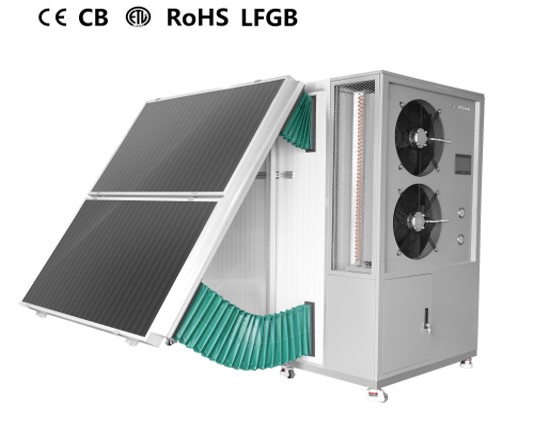

SURRI 3HP Commercial Solar Heat Pump Farm dryer





would you please let us know your company name?


Item

Description
Model 3HP
Power Supply 220V/50Hz 60HZ Single phase
Ambient temperature -5 to 45°C
Load capacity 200-300kg/batch
Dryer Heating capacity 12KW
Rated Input power (Compressor) 2.4KW
Rated Input power (Outdoor fan) 0.7kw(2pcs 0.35KW)
Rated Input power (circulating fan) 0.6KW
Total Power 3.7KW
Rated Input Currents 13A
De humidification capacity 12KG/H
Compressor Model No  3HP
SIZE 2200X1400X2100MM
Refrigerant Type special refrigerant
Refrigerant charge 3.5KG
Evaporator Copper tube, Aluminum fins – Yellow anticorrosive   material
Condenser Copper tube, Aluminum fins – Yellow anticorrosive   material
Outdoor fan Qty. 2
Outdoor fan volume capacity 6500 M3 / h
Fan speed 1450R/MIN
Circulation fan volume capacity 5000-8000 M3 / h
Circulation fan speed 2800R/MIN
*Maximum/rated temperature 85/80°C
*Noise 55dB(A)
*Chamber dimension (LWH) 1710x1020x1910mm
Insulation thickness 50mm
Nos. of Trolley NO
Trolley dimensions NO
Trolley Materiel NO
*No of trays 60
*Tray Dimension 640x640x45mm
Tray Material Total stainless steel 304
Door Size 1315X710mm
Nos. of Doors 2
Exhaust maximum temperature 115°C
*Exhaust pressure ≤2.35Mpa
*Return air pressure ≤0.03Mpa
*Net weight 800Kg
Application type Indoor & Outdoor

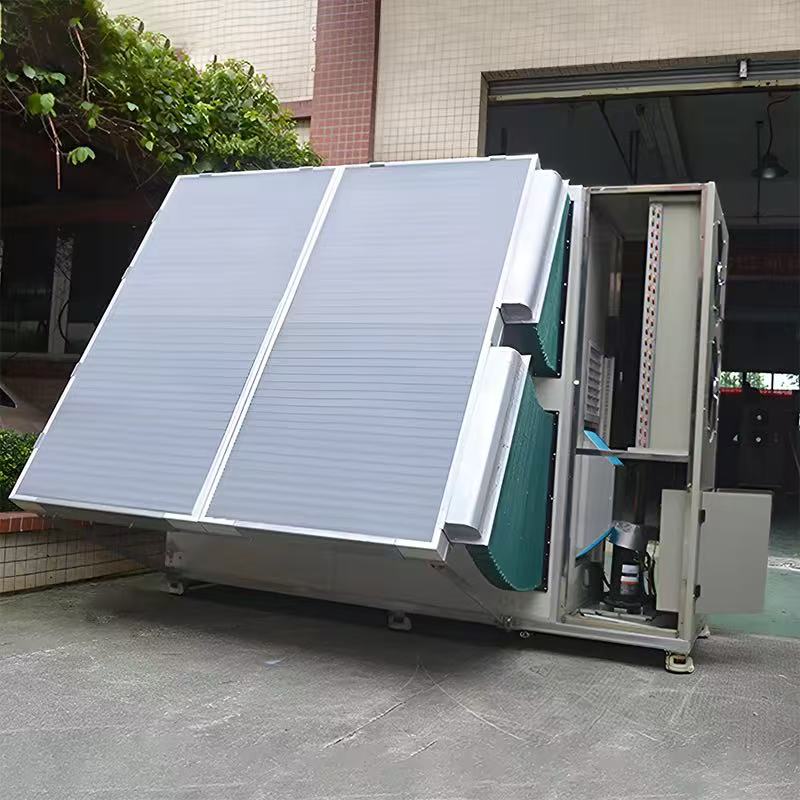

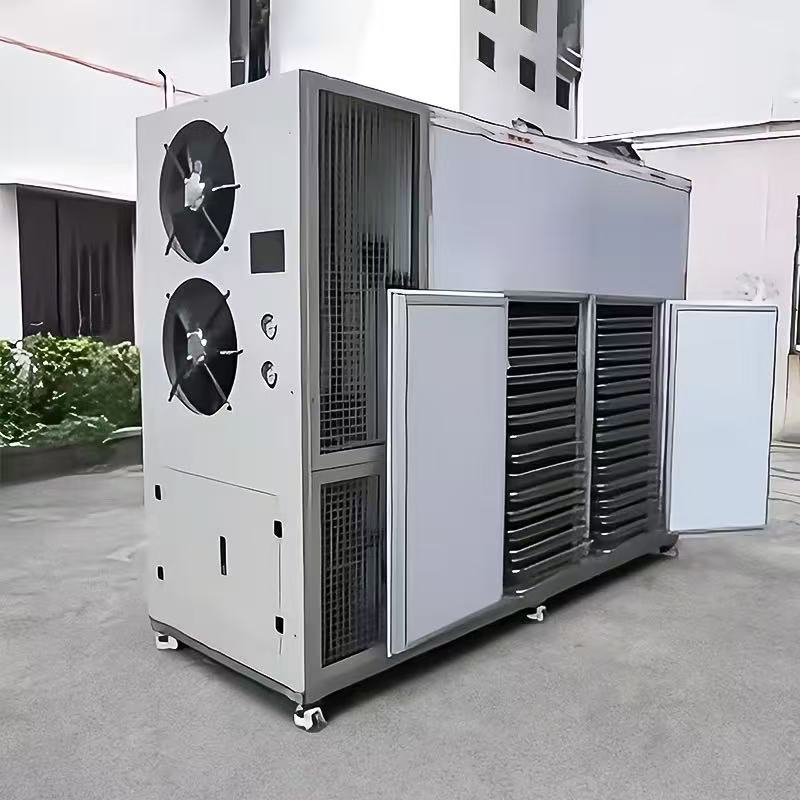

This solar heat pump dryer is the most saved dry machine for power cost with higher performance and 24 hours constant work. With 60 sets stainless steel trays, it can dry 300kg more or less with one batch.

Very easy to operate the machine through select dry button on Touch Screen. And accurate control program assure best dry quality for final dried goods. Work stable and automatically for dry process.

Reinforced strong structure assure long work life with less maintenance.

It use popular for many factories, farms, private business, starup companies, etc to save more power cost and have best quality dried goods to sell on market and grow their business.

Multifuctional drying procedures to dry different goods include fruits, fish, vegetables, nuts, foods,etc

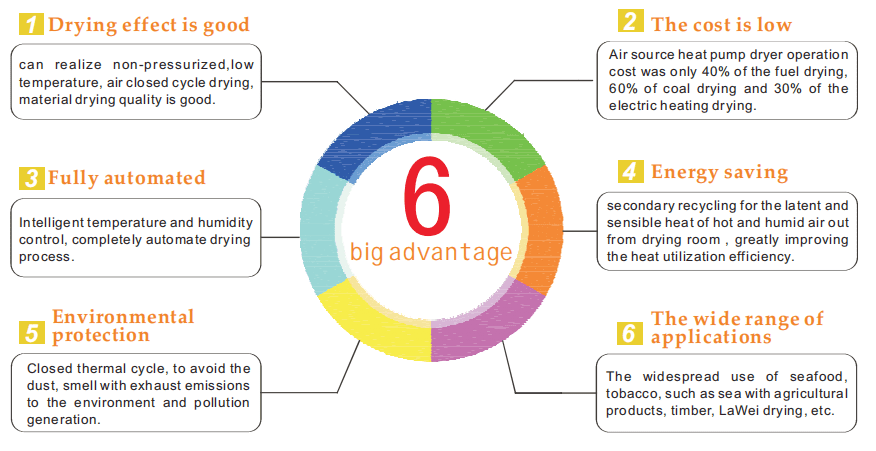

Easy to move everywhere with strong wheels.Advantage

1. Free solar power + Energy-save heat pump power
2. Can save 7.5kwh per hour on working time compare with electric heater. And should save so large power cost if calculate 7.5kwh x 24 hours x 30 days (per month) x 12 (months per year )
3. Accurate dry procedure to dry different goods with best quality like keep fresh color and others.
4. Easy operation to select touch button with different programs for different goods through Touch Screen.
5. Automatic control for all total dry process.
6.Reinforced strong structure with long time work life and less maintenance.
7.Waste heat recovery and reutilization
8. Environmental protection and decrease Carbon emission with solar and energy-save power.

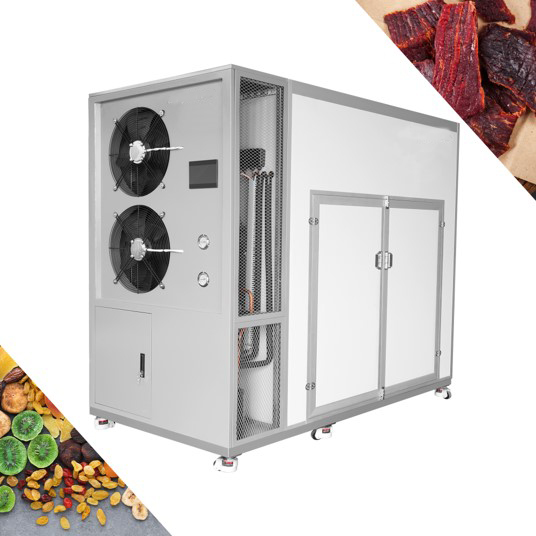

Product details

Application

Widely used to drying fruit,vegetable,herbs,meat,seafood,etc.Such as litchi,honeysuckle,daylily,beef jerky,mushrooms,blueberry,medlar,jujube,walnut,plum,tea,apricot,raisin,bacon,suasage,small shrimp,rice,etc.So this dryer can be a food dehydrator
